•Targeted Refrigeration
• Fast Refrigeration
•Energy-saving & Environmentally Friendly
•Awarded with the Second Prize under State Technological Invention Award
•VIP vacuum thermal insulation plate
•For COVID-19 vaccine storage
•Targeted Refrigeration
• Fast Refrigeration
•Energy-saving & Environmentally Friendly
•Awarded with the Second Prize under State Technological Invention Award
•VIP vacuum thermal insulation plate
•For COVID-19 vaccine storage
7'' Screen Control System
·7-inch Intelligent HD display touch screen,user-friendly interface and more accurate temperature control, with Bluetooth, Wi-Fi and other functions, more convenient operation and more comprehensive functions;
·The high-precision microcomputer control system and platinum resistor sensors enable users to set temperature inside the cabinet within a range from -40 to -86℃.
Refrigeration System
·The imported high-efficiency compressor and EBM fan are energy-saving and highly efficient;
·The large finned condenser with a space between fins≤2mm, providing affective heat dissipation.
Security System
·The perfect audible & visual alarm system : high and low temperature ,sensor failure ,power
failure ,low battery ,door ajar ,main board communication error high ambient temperature ,built-in datalogger USB failure,samples out of date notification etc;
·The compressor start delay and stopping interval protection can ensure reliable operation;
·Both the touch screen controller and key- board controller have password protection which can prevent any adjustment of operatiion without permission;
Three-dimensional Thermal Insulation
The six sides of the cabinet are made from high-efficiency VIP vacuum thermal insulation plate, and the thermal insulation design of the inner door made from foaming material and the outer door system was awarded with multiple patents, which can improve the thermal insulation performance of the freezer.
Human-oriented
·The new designed assisting handle and vaccum release port let the freezer be operated single-handed to open and close the outer door.
·The newly added file box makes recording easier and more convenient.
·The liner made from stainless steel 304 for medical use is low- temperature tolerant and corrosion-resistant, which has a long service life and is easy to clean;
·The universal casters and leveling feet design are more convenient for movement and fixation.
Optional Accessory(WiFi/Bluetooth printer/Mechanical lock/Swipe card/Fingerprint)
Connect WiFi to upload data to the cloud space, monitor the device, check the status of the refrigerator faster, and ensure the safety of the samples.Optional Bluetooth printer, real-time export temperature data, temperature graph, setting operation and other data, to understand the freezer operating status.Optional functions such as card unlocking, fingerprint unlocking, and facial recognition unlocking are available to facilitate quick access to samples.
This Intelligent Control System Ultra low Energy saving freezer can be used as laboratory freezer, ultra low medical freezer and deep freezer is suitable for applying in hospitals, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, and more.

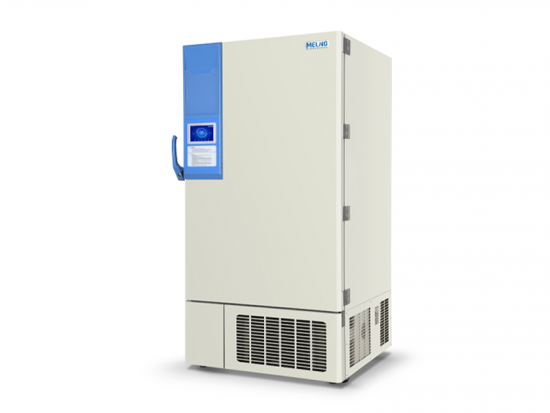

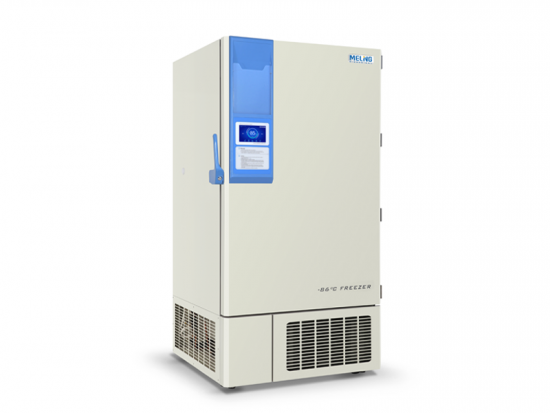

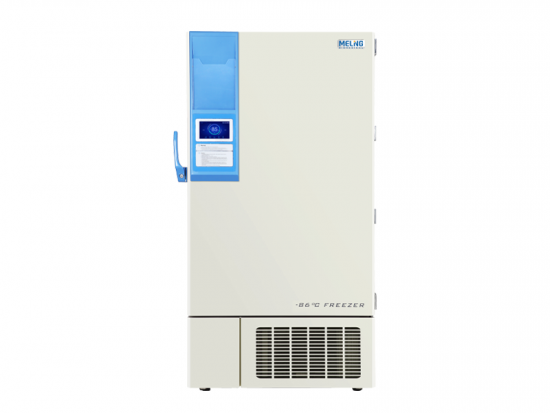

DW-HL678/SA is the current hot ultra-low temperature freezer for COVID-19 vaccine storage.
-86℃ Ultra-low Temperature Freezer | |
Model | DW-HL678/SA |
Cabinet Type | Upright |
Capacity(L) | 678 |
Internal Size(W*D*H)mm | 750*696*1286 |
External Size(W*D*H)mm | 1090*1025*1955 |
Package Size(W*D*H)mm | 1203*1155*2171 |
NW/GW(Kgs) | 330/413 |
Performance | |
Temperature Range | -40~-86℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | -86℃ |
Climate Class | N |
Controller | Microprocessor |
Display | HD Intelligent Touch screen |
Refrigeration | |
Compressor | 2pcs |
Cooling Method | Direct Cooling |
Defrost Mode | Manual |
Refrigerant | Mixture gas |
Insulation Thickness(mm) | 130 |
Construction | |
External Material | Cold rolled steel sheet |
Inner Material | Stainless steel |

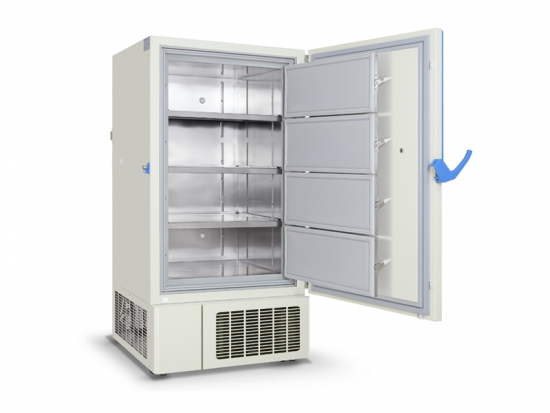

Shelves | 3(stainless steel) |
Door Lock with Key | Yes |
Padlock | Yes |
Access Port | 3pcs. Ø 25 mm |
Casters | 4+(2 leveling feet) |
Data Logging/Interval/Quantity | USB/Record every 5 minute / 10 years |
Backup Battery | Yes |
Alarm | |
Temperature | High/Low temperature,High ambient temperature |
Electrical | Power failure,Low battery |
System | Sensor failure,Main board communication error,Condenser overheating failure,Door ajar |
Accessories | |
Standard | Remote alarm contact,RS485 |
Options | Chart recorder, CO2 backup system |
